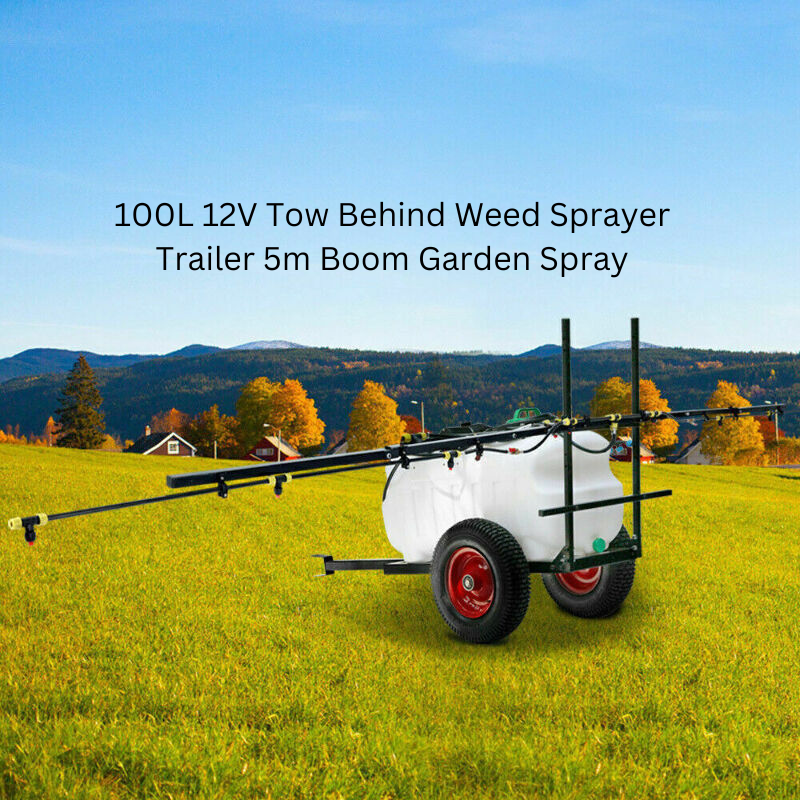

100L 12V Tow Behind Weed Sprayer with trailer & 5m Boom

This brand-new tow-behind sprayer is equipped with an inbuilt pump, boom spray, and a handheld spot nozzle, making it perfect for large-scale spraying applications. Featuring a high-pressure 12V pump with a pressure gauge, it precisely regulates pressure for both the boom and handheld spray, ensuring optimal performance for broad and spot spraying.

With a 100-litre chemical-resistant tank, a 6m high-grade chemical hose, and a rear 5m boom sprayer, this unit allows for efficient coverage, while the handheld spray nozzle provides targeted application while riding or walking.

Designed for convenience, the sprayer easily attaches to ATVs, quad bikes, four-wheeled motorcycles, and mowers using the tow hitch. The pressure-activated diaphragm pump delivers a smooth and consistent flow, and the tank is made from durable, chemical-resistant polymers for long-lasting performance.

Ideal for fertilizers, weed killers, de-icers, and ethylene glycol products, this sprayer is built for efficiency, durability, and ease of use.

Weed Sprayer Features:

• Durable & Leak-Proof Tank – 100L chemical-resistant construction for long-lasting use
• Foldable 5m Boom – Compact and easy to store

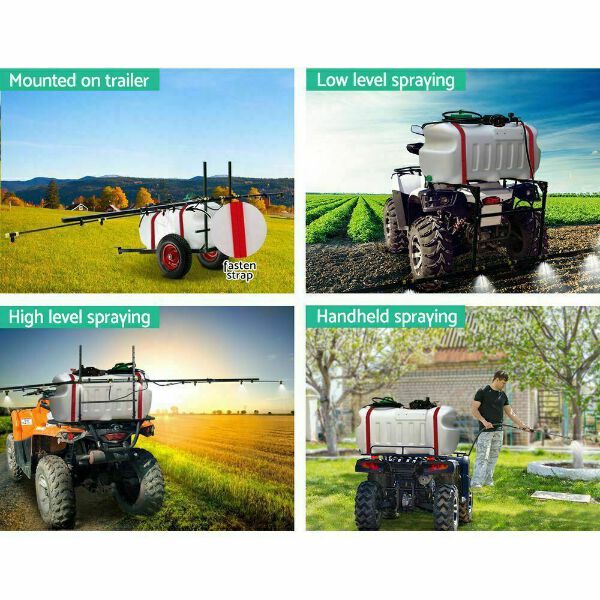

• Three Spraying Modes – Versatile options for different applications
• Hitched or Handheld Spraying – Use with a trailer or manually
• Handheld Spray Nozzle Included – For precise spot spraying
• High-Performance Pump – 100 PSI self-priming pump with 13L/min high flow
• 150kg Trailer Capacity – Strong and sturdy for heavy-duty use
• Weather-Resistant Build – Impact-resistant, rustproof, and UV-stable design
• Rust-Resistant Coated Frame – Enhanced durability in tough conditions
• Effortless Operation – Pump-driven system for easy spraying
• Heavy-Duty Hose – 6m high-pressure chemical-grade hose
• Built-In Run Dry Protection – Prevents pump damage
• Multi-Purpose Use – Ideal for weed control, fertilizing, and watering

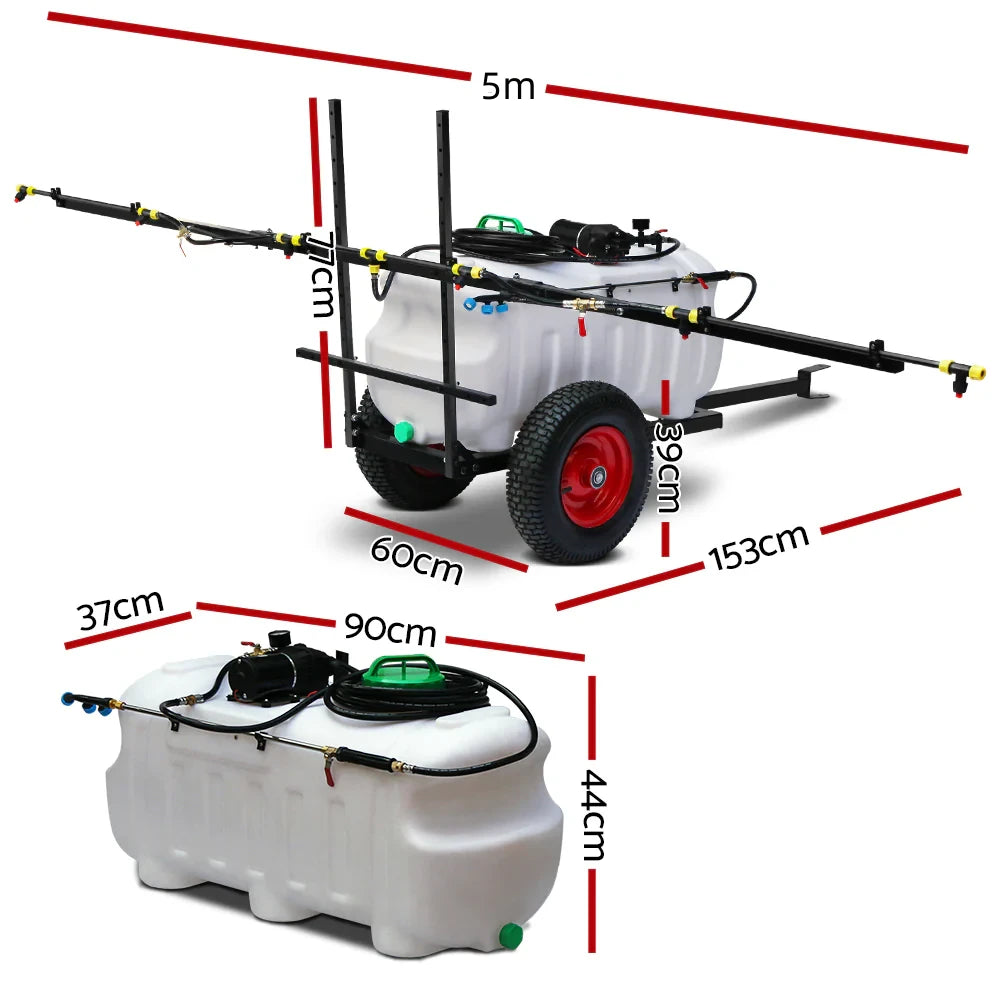

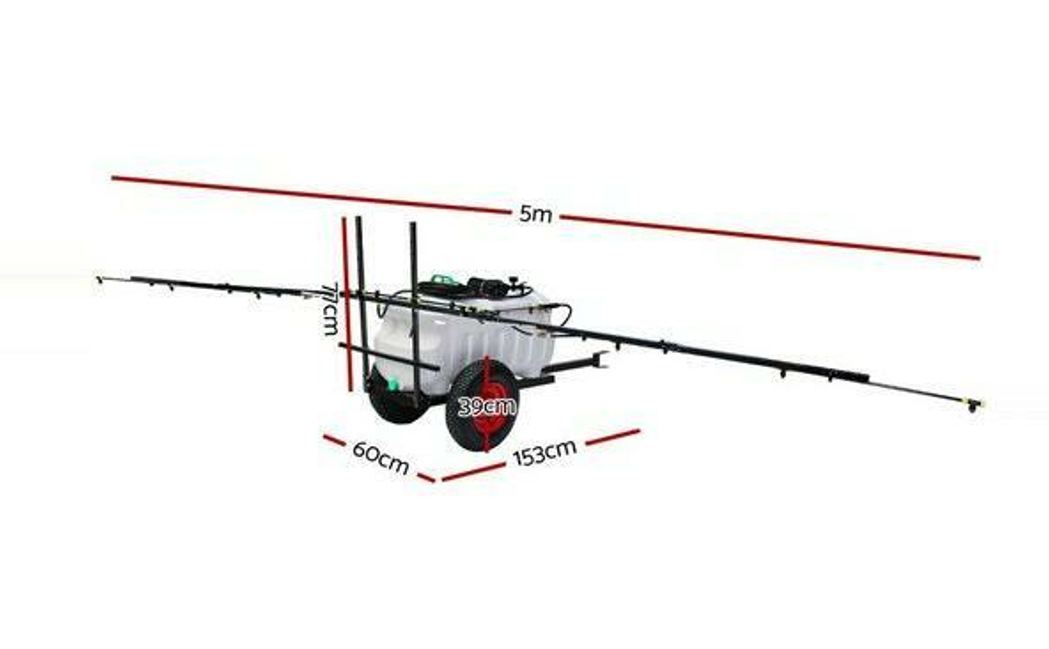

Weed Sprayer Specifications:

• Tank Capacity: 100L
• Boom Length: 5m
• Trailer Capacity: 150kg
• Voltage: 12V
• Maximum Flow Rate: 13L/min (3.4 GPM)
• Current Draw: 4.5A (Max. 10A)
• Maximum Pressure: 100 PSI (0.69 MPa)
• Power Cord & Battery Clamp Length: 3m
• Gun Hose Length: 6m
• Adjustable Spray Pole Length: 55cm

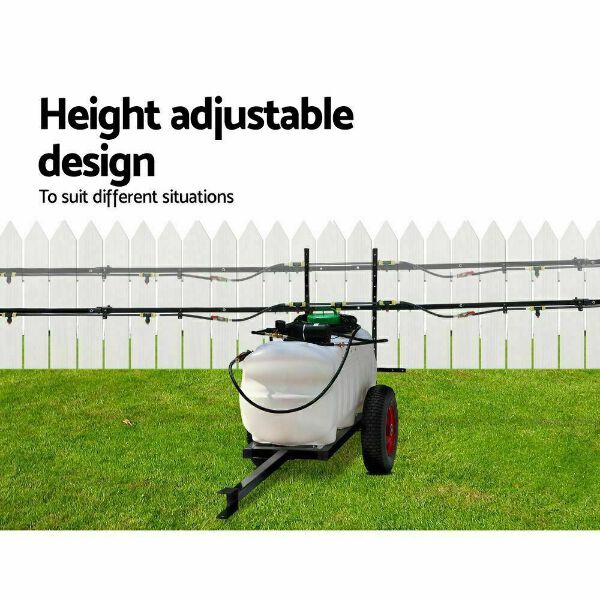

• Adjustable Height: 77cm
• Boom Hose Length: 1.83m

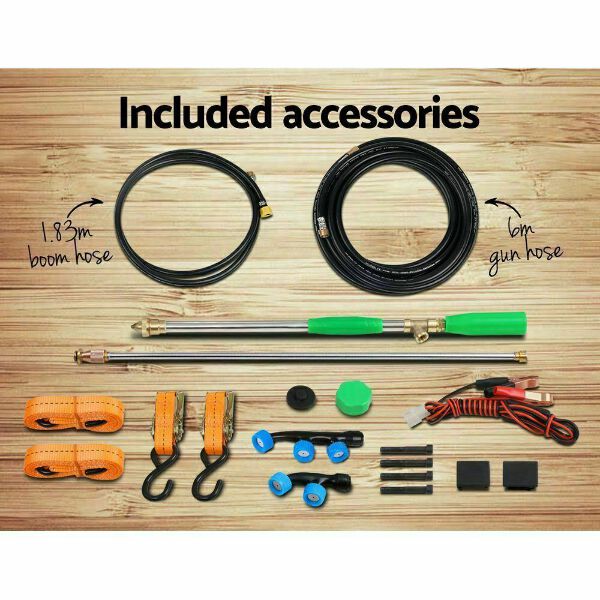

Package Contents:

• 1 × GIANTZ 100L Weed Sprayer
• 1 × 5m Boom
• 1 × Frame Set
• 1 × Spraying Tube
• 1 × Single Nozzle
• 1 × Twin Nozzle
• 1 × Triple Nozzle
• 2 × Fastening Straps
• 1 × Battery Cable & Clamps
• 1 × Trailer
• 1 × User Manual

Packaging:

Flat Packaged

(basic assembly is required):

Carton A: 92*39*51cm /22kg

Carton B: 89*41*16cm/22kg
