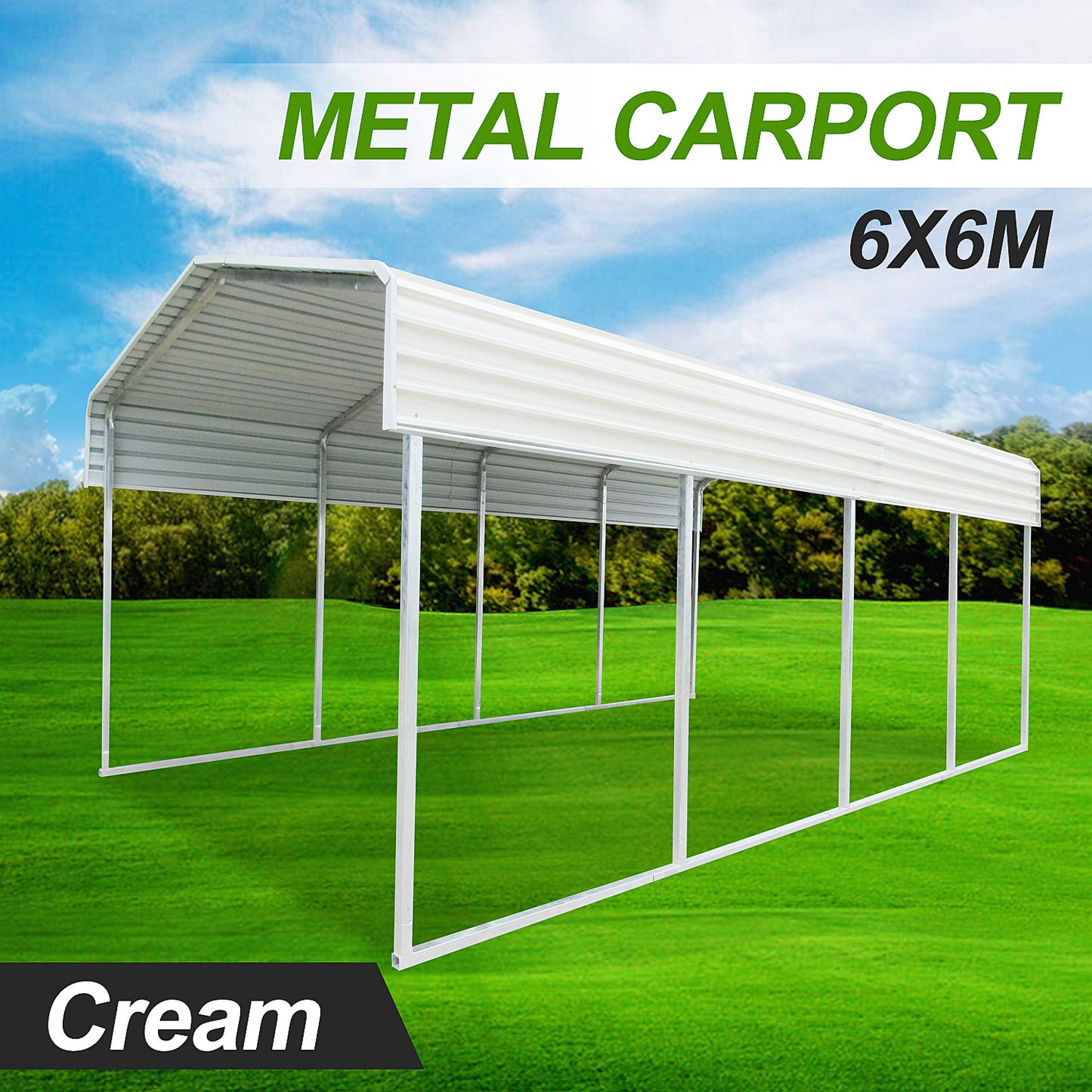

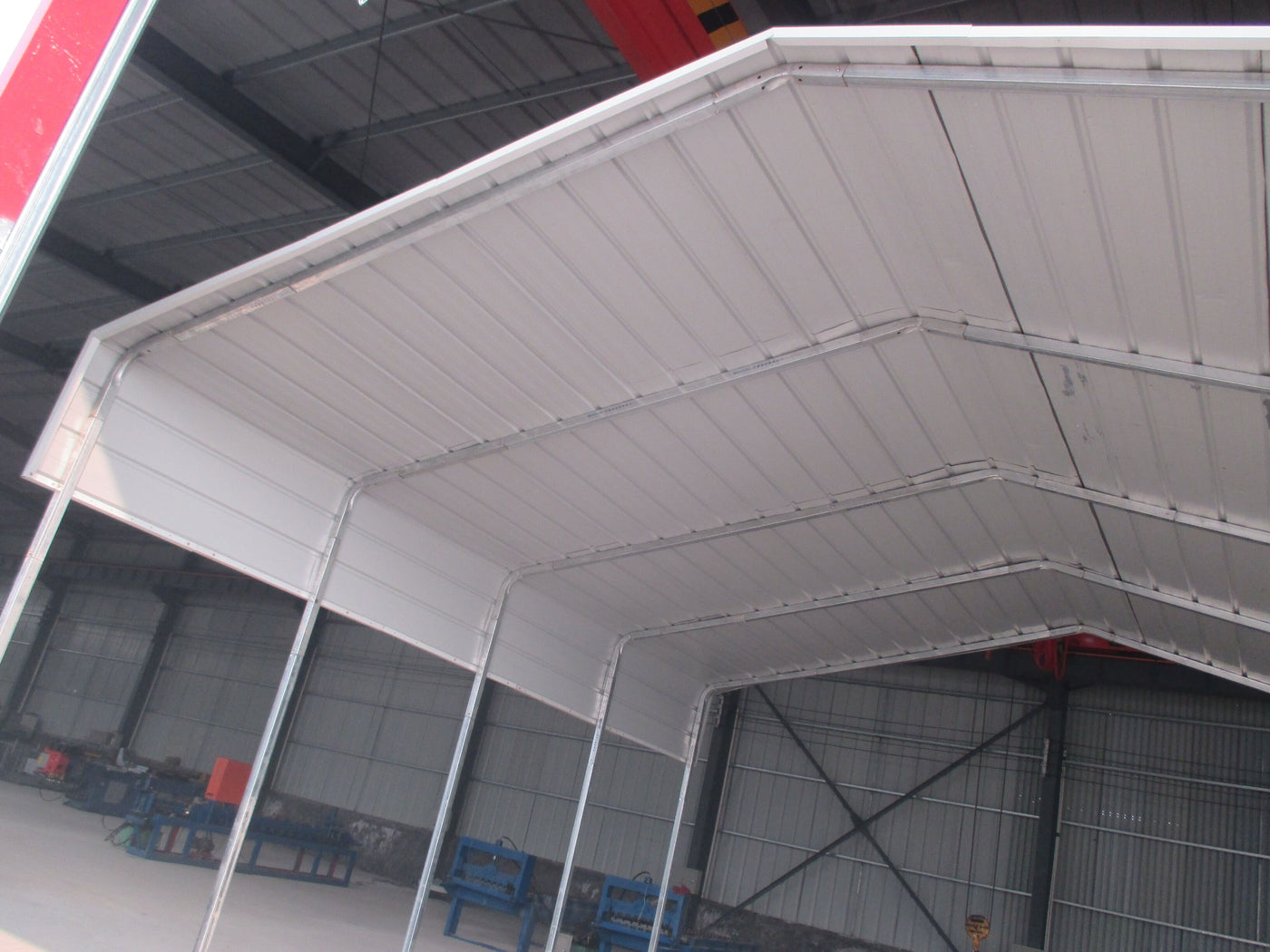

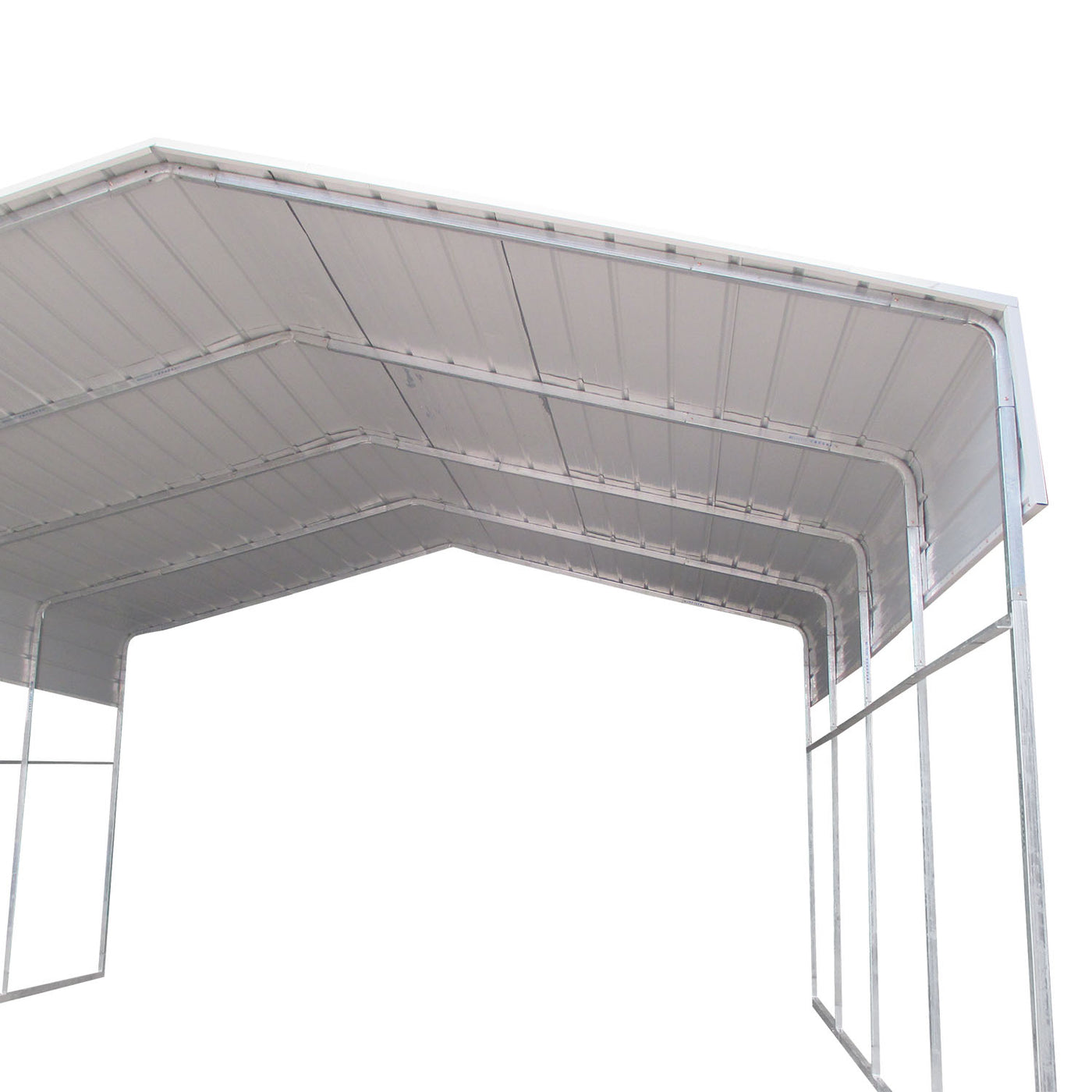

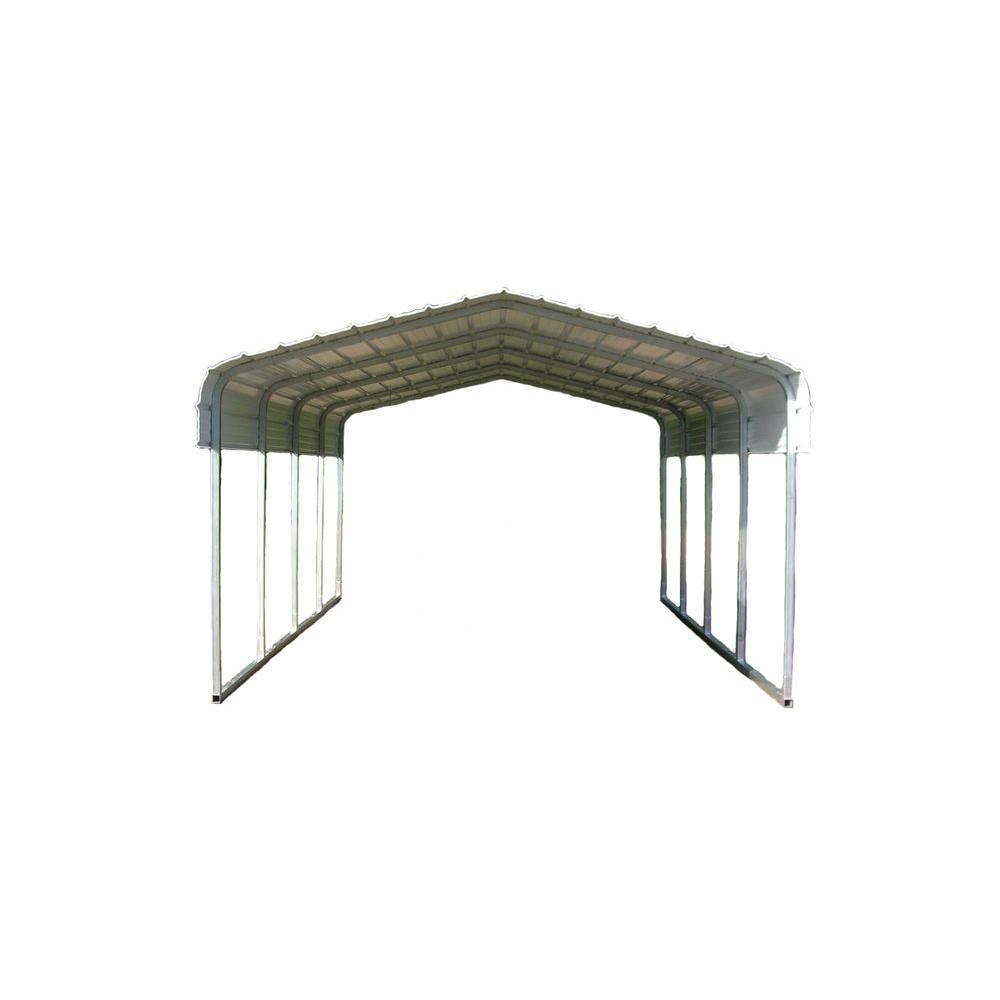

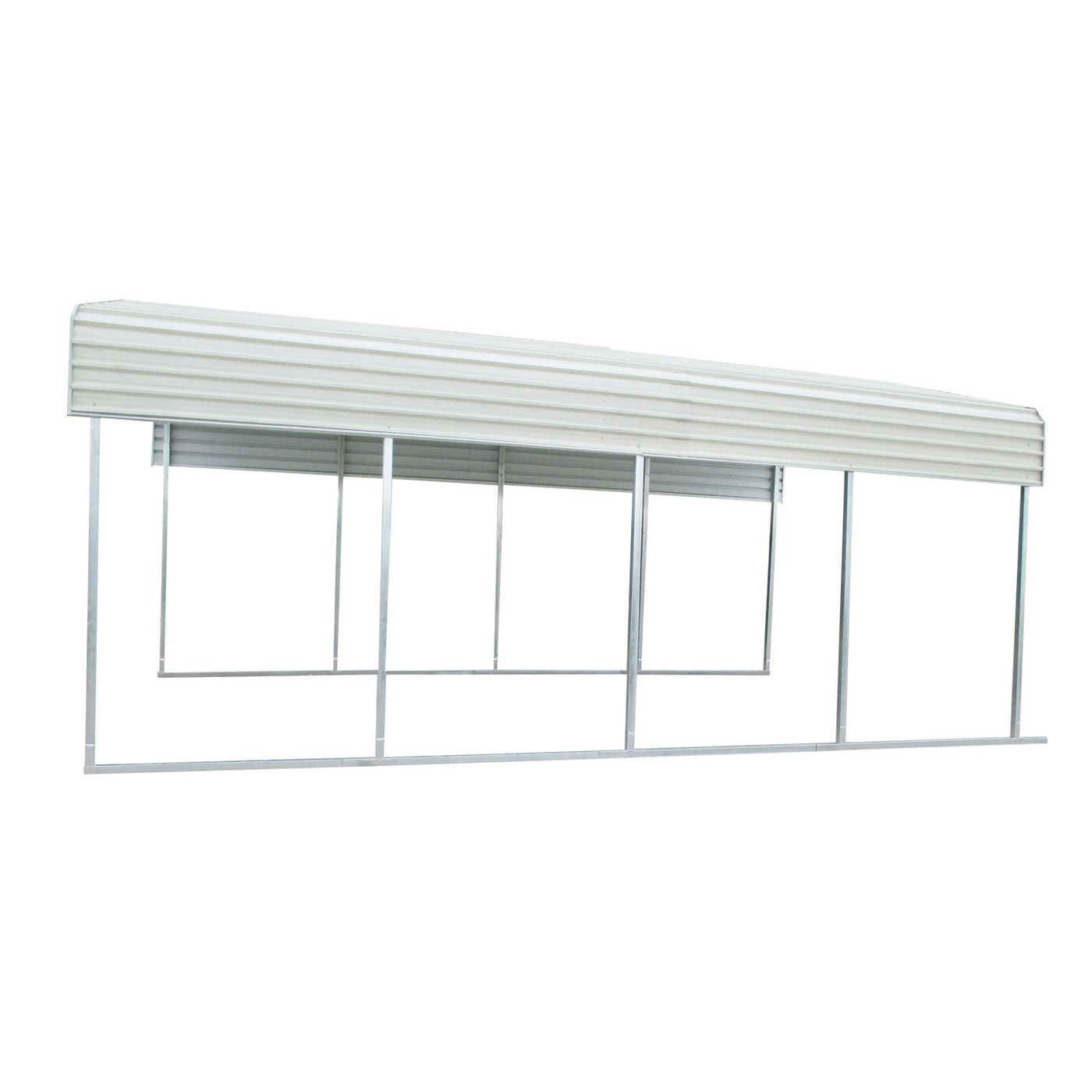

Portable Carport 6mx6m Vehicle Shelter
- Overall Dimension : 6.06m wide x 6.25m Deep x 3.2m High
- Water-proof materials, 900mm corrugated colour steel panel in 0.35mm
- Heavy-duty galvanized square tube: approx. 50mm x 50mm x 1.6mm Thickness
- Instruction drawing, step by step

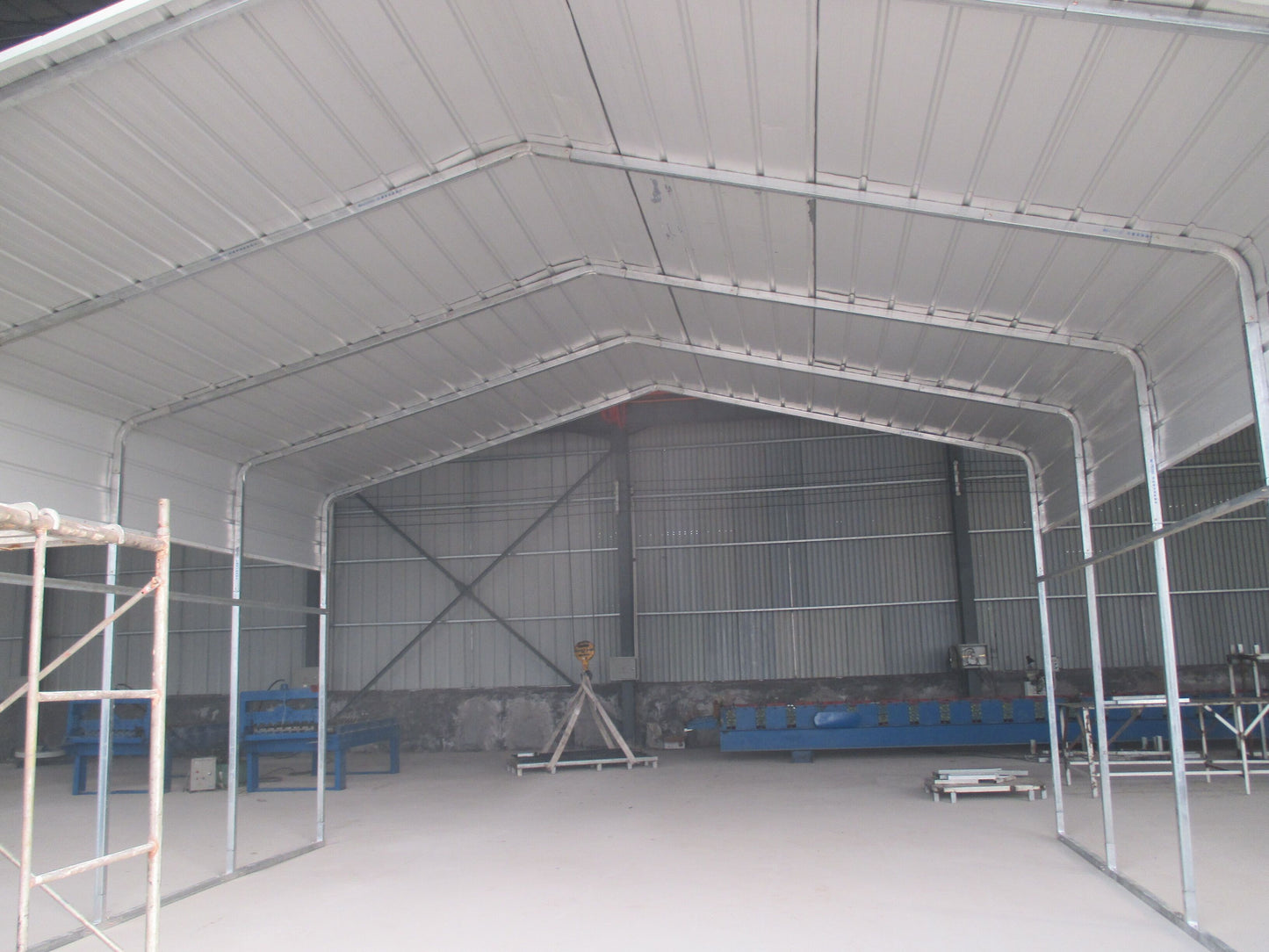

- 5 sets of support frames spaced by the distance of about 1.5m to provide a very strong structure support system.
- Good for portable/ temporary purpose as well as long-term use ( need to bolt into the ground, anchors provided)

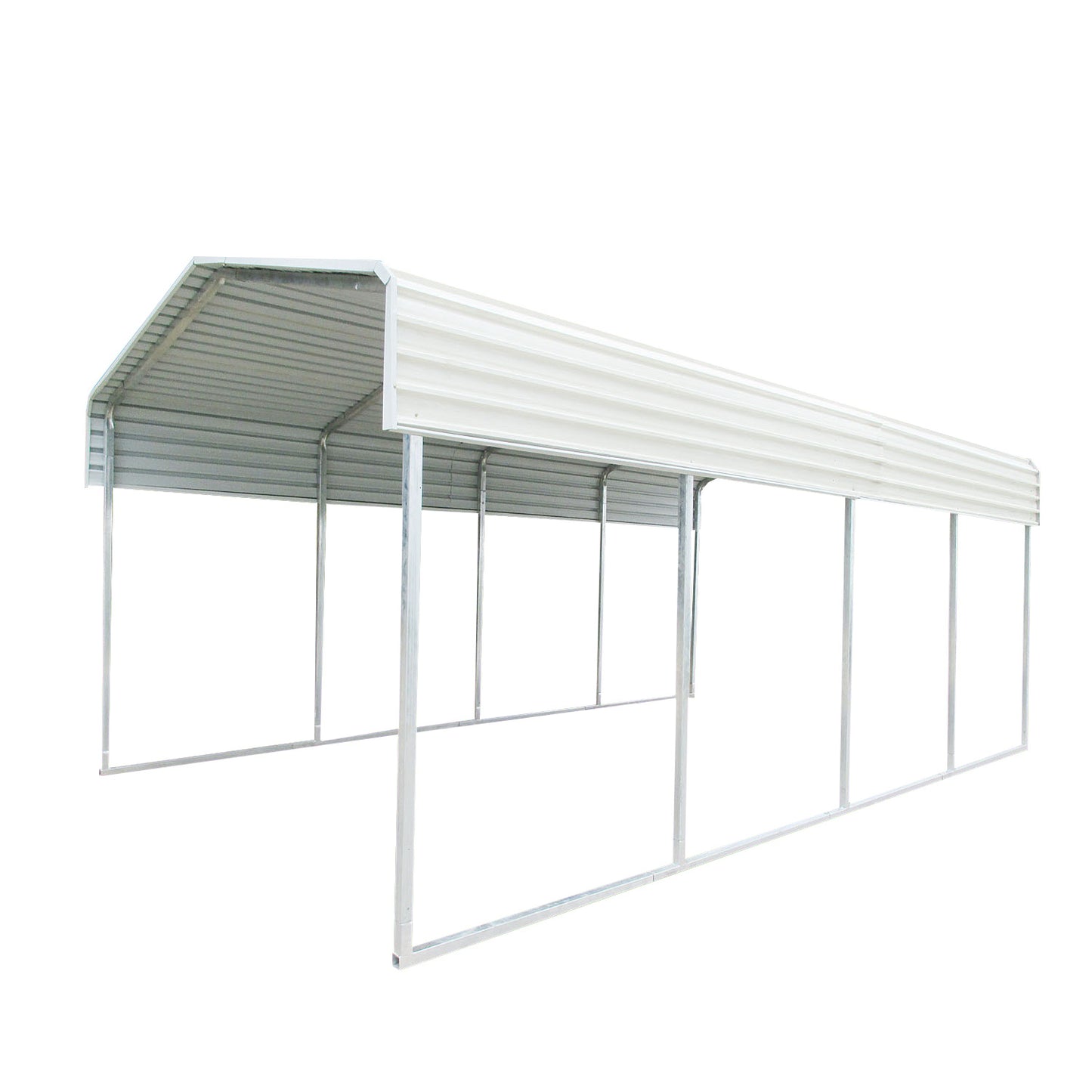

- Colour: Cream
- Overall size: 6x6m (Width and Depth)
- Frame size: 6x6m (Width and Depth)
- Height: 2.4(Wall)/3.2m (Ridge)
- Support Beam Size:50 x 50 x 1.8mm Hot Dip Galvanised steel tube
- Material:0.35mm Double pressed ColourSteel sheets
- Flat Packed. The delivery driver needs some help when unloading the boxes
- Carton 1: 45cm x 220 cm x 16cm (61kg)
- Carton 2:220cm x 50cm x 16cm (125kg)
- Carton 3:170cm x 96cm x 5cm (80kg)
- Carton 4: 170cm x 96cm x 5cm (80kg)
- Total Weight: 346kg approx
For assembly, The structure of this carport/shelter is joined together by bolts and nuts, the roof sheets are secured onto the structure by self-tapping screws. The average time for carport/shelter assembly for 2 people is approximately 1day, not including the base. It may take longer or shorter depending on your experience, tools, site access and how many helpers you have etc. The assembly process is relatively straightforward and steps to installing are illustrated in the manual. It is up to the buyer to assemble the shelter and also to determine the base type.
All parts and accessories come in flat packed and ready for assembly. Please note that some parts may be slightly scratched or dented due to the transport process but are still very structurally sound.
Due to the weight of the boxes, it is required to be placed on pallets and shrink-wrapped for delivery and/or pick up.
For delivery, if you don't have a forklift or unloading crane to unload from the delivery truck, the driver has the right to refuse to help manually unload due to health and safety regulations.
If you intend to pick up the item, please note that you must bring a commercial vehicle to the warehouse as it will be loaded by a forklift on a pallet.
