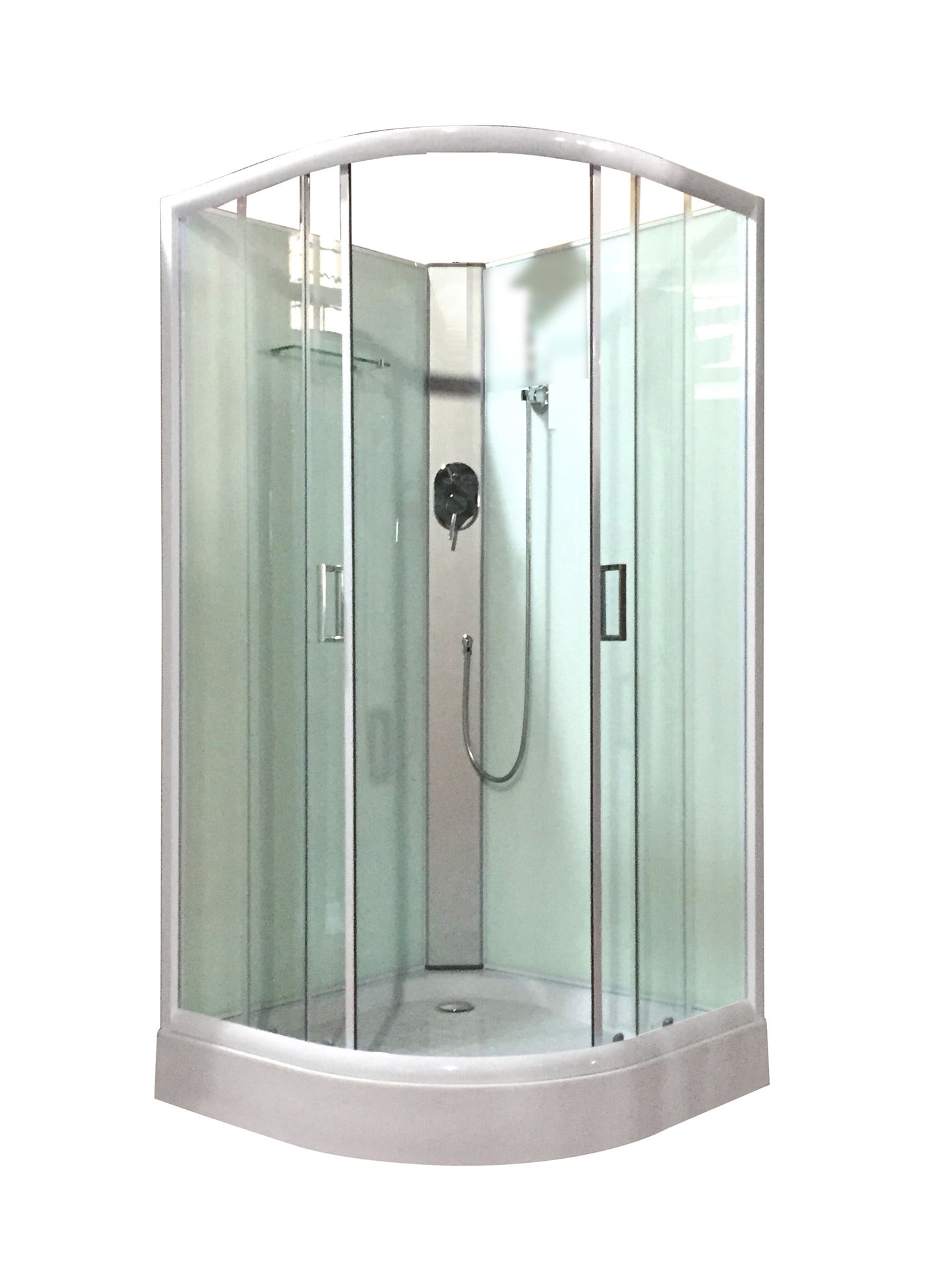

800 x 800mm Shower Cubicle with Base & Mixer – 2300mm Total Height White

This modern 800 x 800mm shower cubicle combines a double sliding-door enclosure, shower base and mixer in one practical bathroom solution.

Designed with clear toughened safety glass, a gloss white frame and white back panels, it offers a clean contemporary look suitable for home renovations, rental properties and building projects.

The enclosure uses 5mm clear tempered glass certified to AS/NZS 2208. Stainless steel rollers and handles, magnetic door seals and a reinforced low-profile shower base provide practical everyday durability.

Key Features

• 5mm Tempered Safety Glass – Clear toughened glass certified to AS/NZS 2208.
• Double Sliding Doors – Space-efficient design with easy access from the corner.
• Gloss White Frame – Clean, modern finish suitable for a wide range of bathrooms.
• White Back Panels – Creates a complete and coordinated shower enclosure.

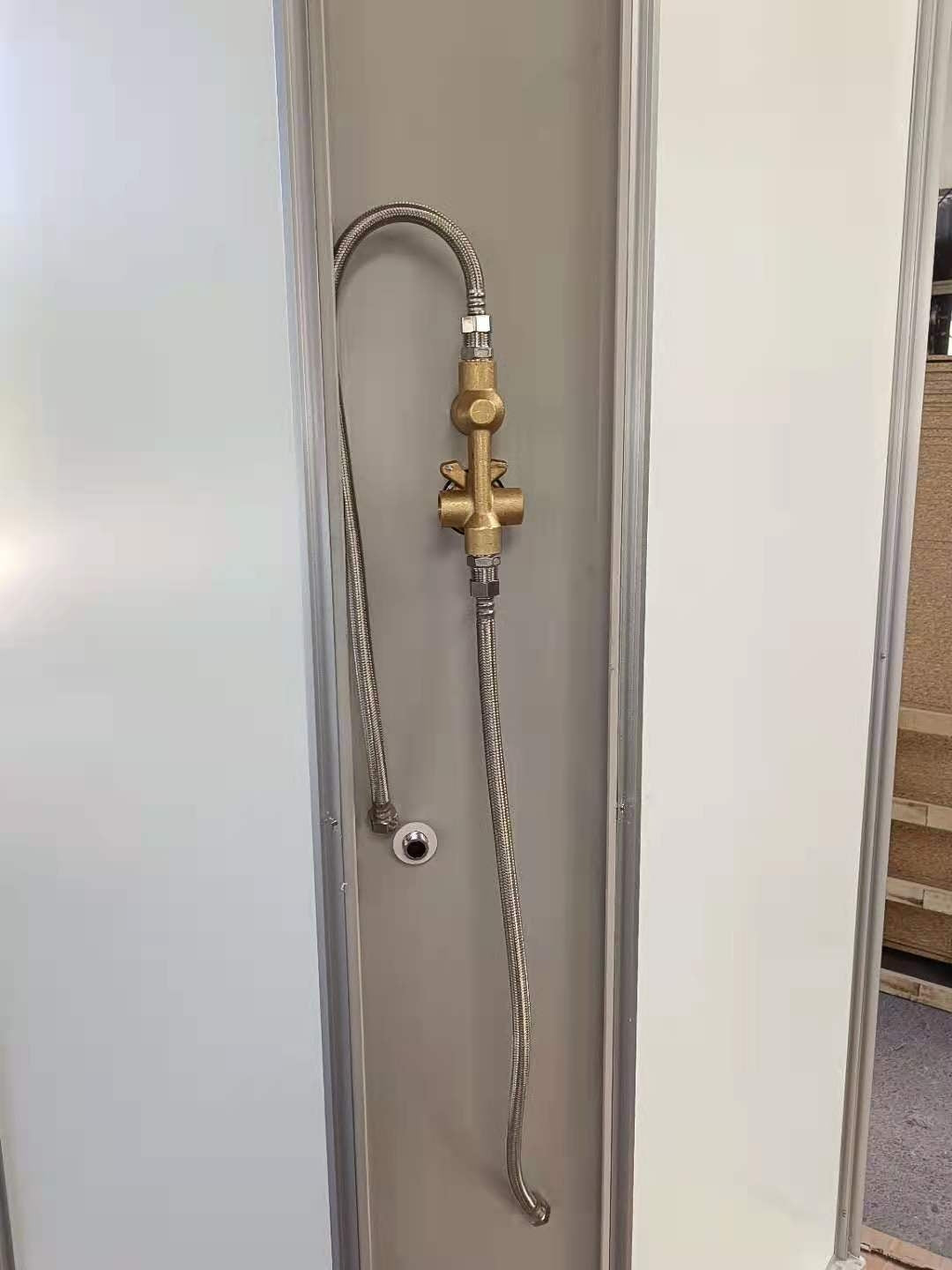

• WaterMark Approved Mixer – Includes an Australian-approved WaterMark mixer.

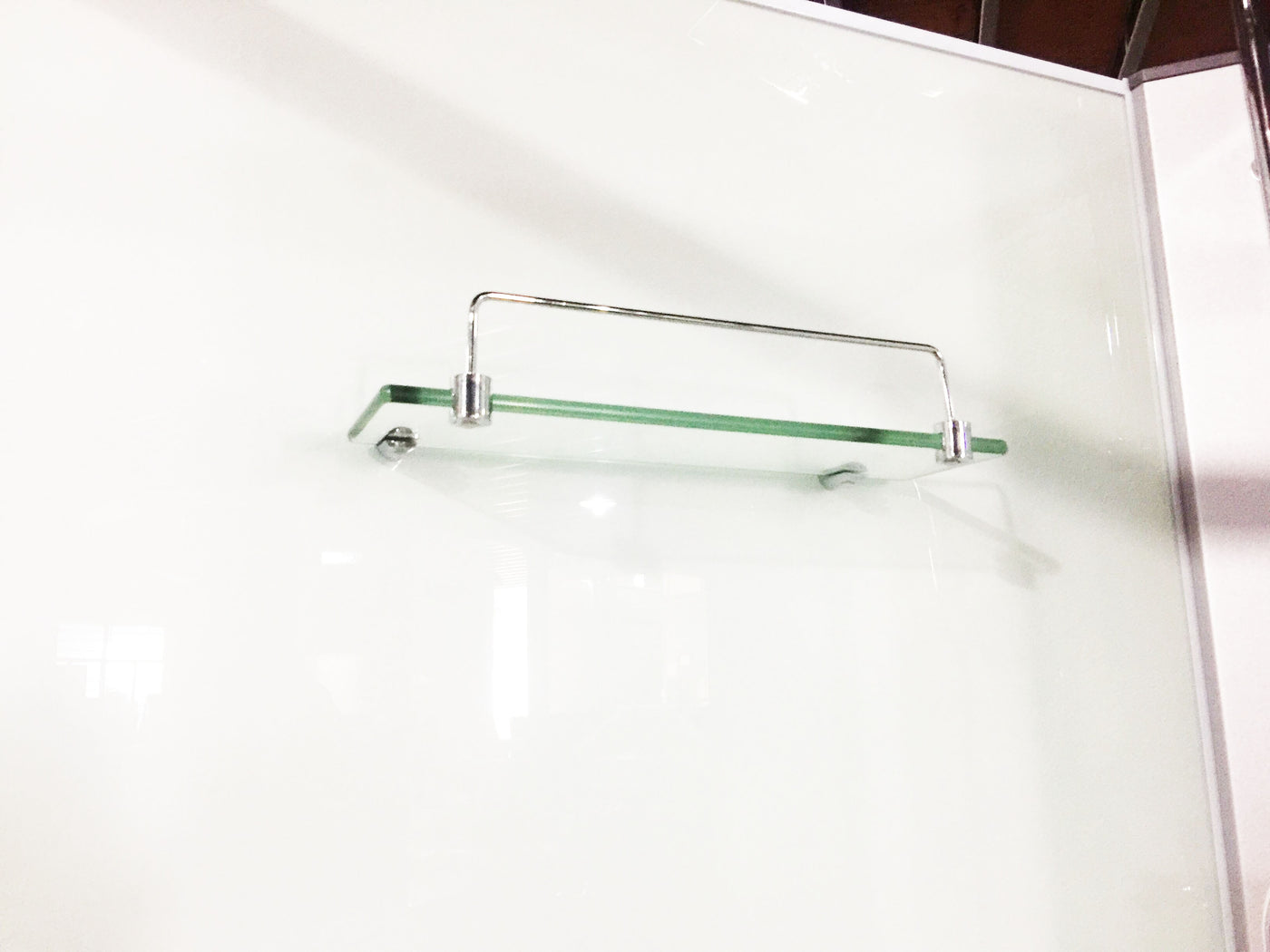

• Glass Shelf – Convenient storage for shower essentials.
• Stainless Steel Rollers – Designed for smooth and reliable door operation.
• Stainless Steel Handles – Durable and easy to use.
• Magnetic Door Seals – Help keep the doors securely closed and reduce water leakage.

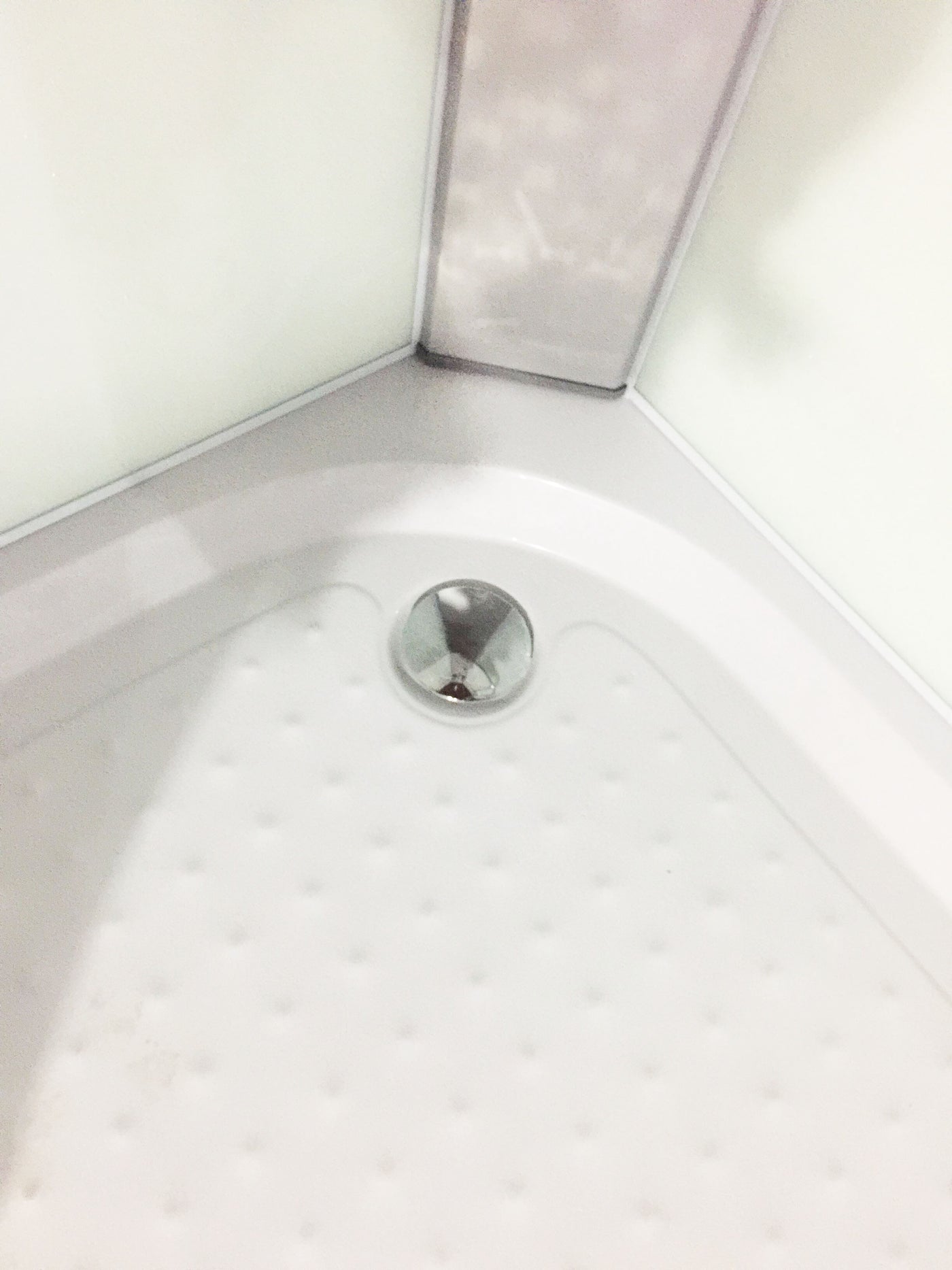

• Non-Slip Shower Base – Low-profile base with a reinforced metal frame and supporting legs.

Specifications

• Shower Size: 800 x 800mm
• Total Height: Approx. 2300mm from floor to shower head
• Shower Screen Height: Approx. 2000mm from floor to top of screen
• Door Opening: Approx. 450mm
• Glass Thickness: 5mm
• Glass Type: Clear Tempered Safety Glass
• Glass Standard: AS/NZS 2208
• Door Type: Double Sliding Door
• Frame Finish: Gloss White
• Back Wall: White
• Shower Base Height: Approx. 150–160mm
• Base Support: Reinforced metal frame with supporting legs

Optional Hand Shower & Overhead Shower

The following shower fittings are sold separately.

Hand Shower
Brand: Aodete
WELS Registration: S15329
Flow Rate: 9.0 L/min
WELS Rating: 3 Star
View Hand Shower

200mm Overhead Shower Head
Brand: Aodete
WELS Registration: S12828
Flow Rate: 9.0 L/min
WELS Rating: 3 Star
View Overhead Shower Head

Package Details

• Package 1: 1960 x 420 x 85mm
• Package 2: 1870 x 645 x 40mm
• Package 3: 815 x 815 x 155mm
• Total Packages: 3 cartons
• Total Weight: Approx. 86kg
• Supplied flat-packed for transport

Installation

This product requires moderate to advanced assembly. Professional installation by a suitably qualified tradesperson is recommended.

Where flexible pipes or plumbing components are used, installation must comply with applicable plumbing requirements. WaterMark-approved products should be used where required. Please consult a licensed plumber if you are unsure.

Delivery Information

This product weighs more than 35kg. A forklift may be required at the delivery address. Alternatively, please ensure a second person is available to assist the driver with unloading.

If suitable unloading assistance is not available, the freight carrier may need to arrange a tailgate or crane-equipped vehicle at an additional cost.

Product Code: 76903
